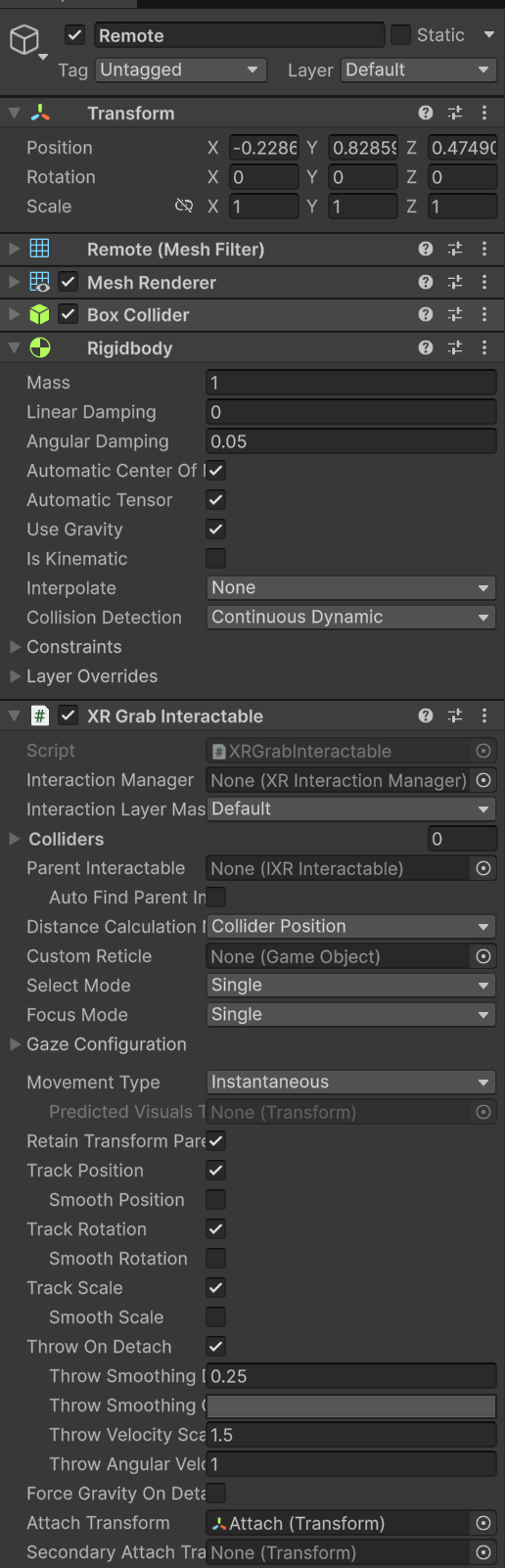

1. Add a grabbable remote control

  • Remote (日本語だとリモコン)を配置し
    • Regidbody をアタッチ
      • Collision DetectionContinuous Dynamic
    • XR Grab Interactable をアタッチ
      • Remote に Attach Transform 用の GameObject を子供として追加し、セット
      • とりあえず、リモコンの赤外線が出る方向が合うようにすればいい

2. Play a sound when the remote is activated

  • 引き続き Remote 、ここでは Remote の Activate イベント時に音を鳴らす
  • RemoteAudio Source をアタッチ
    • Spatial Blend のみ 1 に変更
    • Play On Awake は、次の Play Quick Sound スクリプトが Off にする

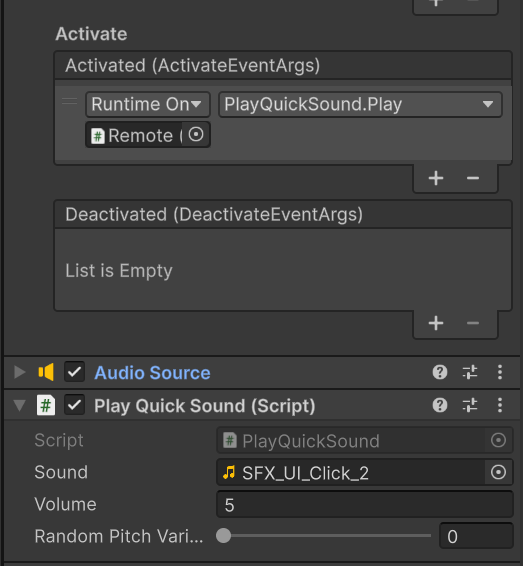

  • Play Quick Sound スクリプトをアタッチ
    • これは _Course Library に入っているもの
    • ランダムに pitch を変更する機能を無視すれば、単に PlayOneShot しているだけ

3. Flash a red light when the remote is activated

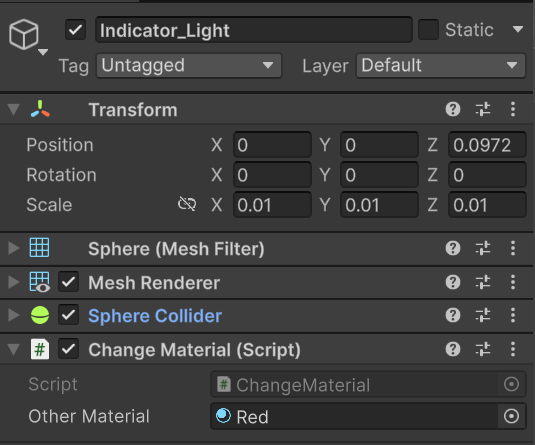

  • Remote の子オブジェクトである Indicator_Light (リモコンの赤外線ライト) に Change Material スクリプトをアタッチ
    • Other MaterialRed にセット

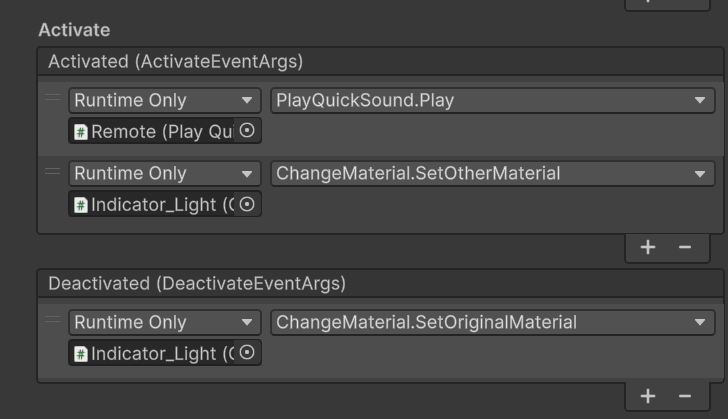

  • Remote の方の Activate イベントに Indicator_Light のマテリアル変更関数をセット
    • こちらは解除時にマテリアルを戻すので Deactivated の方にもマテリアルを戻す関数をセットしている
Indicator_LightRemote

4. Allow the TV to play video

  • TV の Prefab の Screen オブジェクトに対しての操作
  • Audio Source をアタッチ
    • Spatial Blend を 1 に変更
  • Video Player をアタッチ
    • Auto-Select Property が Disable になっていることを確認
  • Play Video スクリプトをアタッチ
    • Play At Start を有効化
    • Video Clips にビデオを一つセット

5. Control the TV with the remote

  • ScreenPlay At Start を無効化
    • これで開始時にはテレビに映像は映らない

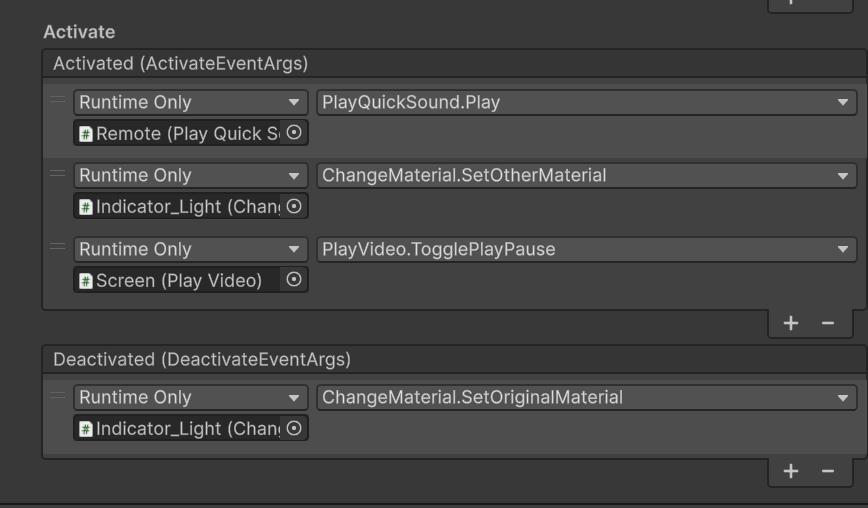

  • RemoteXR Grab Interactable の Activate イベントに ScreenPlayVideo.ToggolePlayPause をセット
    • TogglePlayStop でも可
    • これで、テレビの停止・再開ができる

7. Extension Activities
